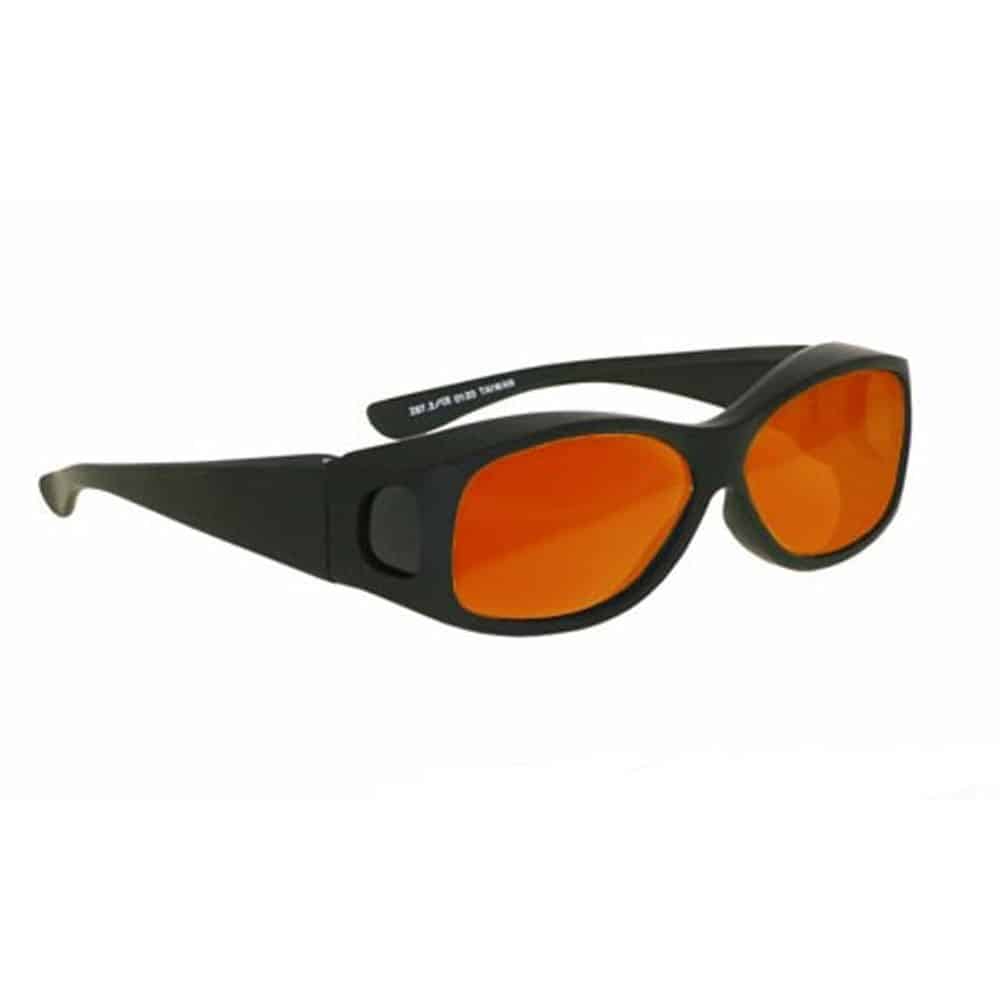

YAG Double Harmonics Laser Safety Glasses – Model 33 Fitover

The YAG Double Harmonics (YAGD) Model 33 is a laser safety fitover built for people who already wear prescription spectacles. A brown polycarbonate YAGD filter is cut and mounted into the Phillips Safety Model 33 frame, so you can keep your own glasses on underneath and still have filtered protection across the front and sides.

The YAGD filter covers two bands that matter in Nd:YAG work: the visible and UV range up to 534 nm, and the near-infrared band around 1064 nm. Phillips Safety lists the filter as CE certified to EN 207, with EN 207 markings published for each band. Visible light transmission is around 26%, so the view is noticeably darker than clear lenses.

Key specifications:

• Filter: YAGD, brown polycarbonate (Phillips part LS-YAGD)
• Optical density: OD 7+ at 190–534 nm; OD 6+ at 910–1070 nm
• EN 207 markings (manufacturer): 190–315 D LB7 + IR LB3; 315–534 D LB5 + IR LB6 + M LB6Y; 900–970 DIR LB6 + M LB6Y; >970–1070 D LB6 + IR LB7 + M LB7Y
• Visible light transmission: approx. 26%
• Laser compatibility: Nd:YAG
• Frame: Model 33 fitover, plastic, black, adjustable temples, integrated side shields
• Sizes: large / extra large
• Also meets ANSI Z136.1 and ANSI Z87.1 (US standards)

Laser eyewear must match your laser's wavelength and required optical density. If you are unsure, send us your laser type and wavelength before ordering and we will check the filter for you.

• Fits over most prescription glasses, so there is no need for separate prescription laser eyewear
• OD 7+ protection up to 534 nm and OD 6+ across 910–1070 nm
• Filter CE certified to EN 207, according to the manufacturer
• Integrated side shields and adjustable temples for a secure, enclosed fit
• Lightweight polycarbonate filter for comfortable longer wear
