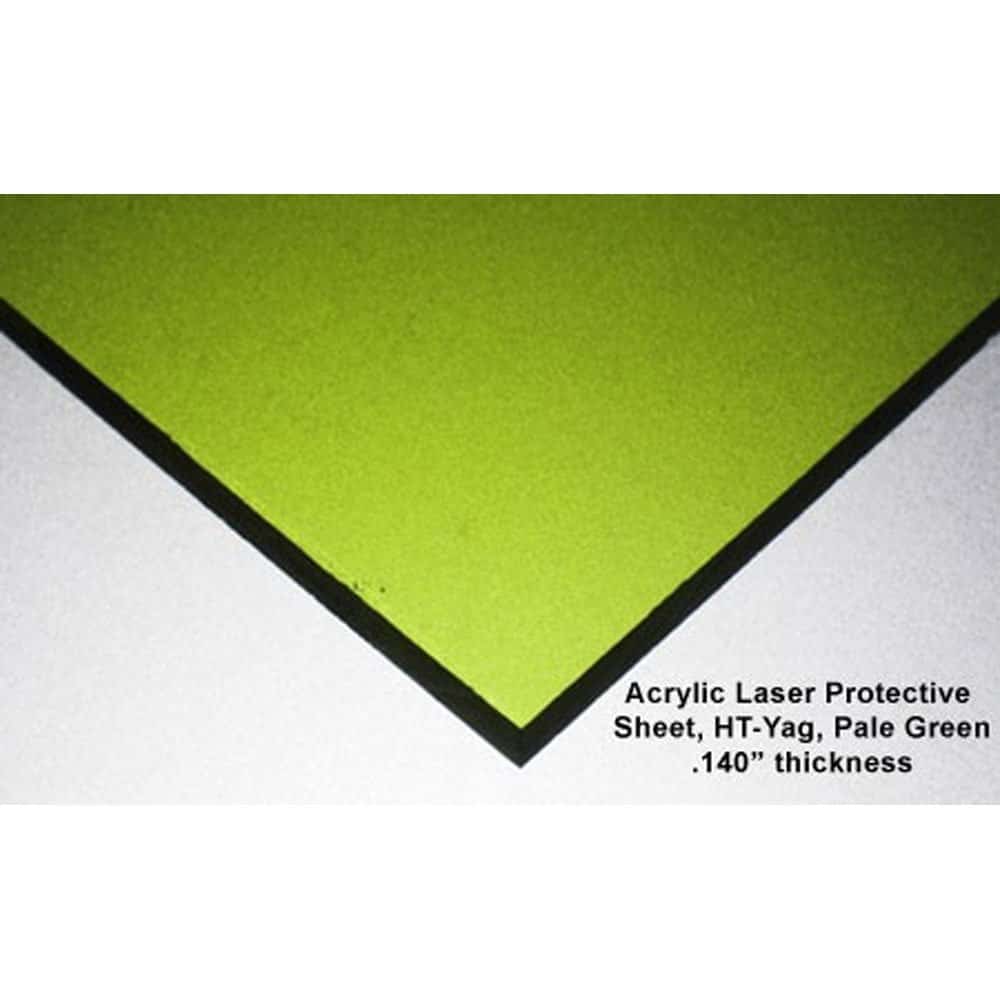

HT-YAG Laser Protective Acrylic Sheet, Pale Green

HT-YAG is an Acrylic laser safety window offering protection primarily from Highest transmission YAG-protective sheet available.  Protection for broad band A, CO(2), excimer, UV curing applications, gallium arsenide GaAs, Nd:YAG. Laser windows can be custom cut, molded, and drilled to your CAD specifications for use in enclosures or machine windows. This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us. Filter specifications can be permanently engraved on the window. Custom sizes and shapes available. This laser safety viewing window meets and/or exceed US ANSI Z136 standards for use with lasers. .125" Thickness

Maximum Sheet Size 24" X 36"

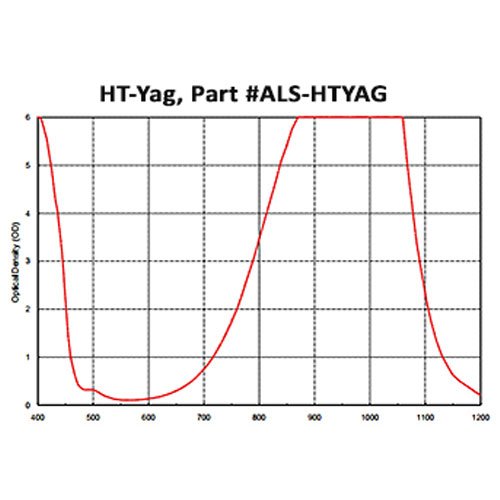

OD 5+ 190-400nm
OD 3+ 800-1080nm
OD 5+ 860-1064nm
OD 6+  1064nm
OD 5+ 10600nm
