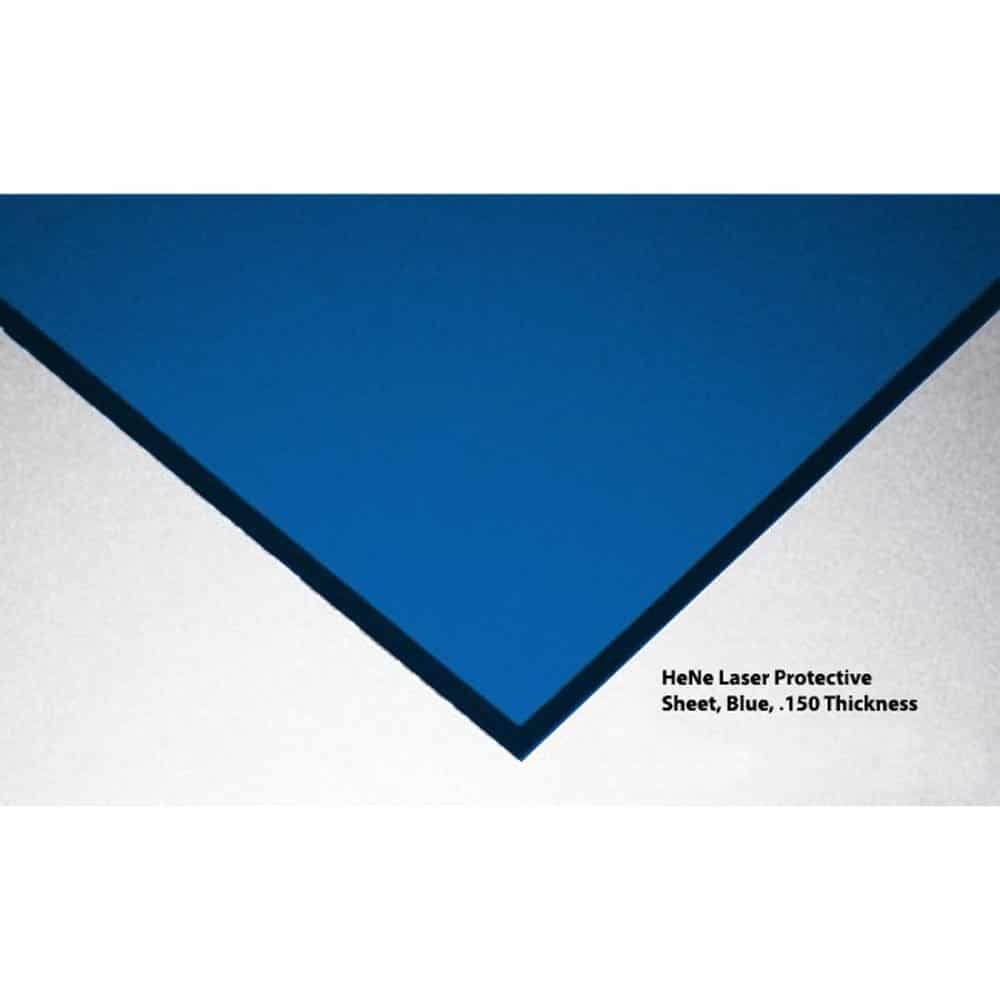

HeNe Laser Acrylic Sheet, Blue

The HeNe Laser Acrylic Sheet is an Acrylic laser safety window offering protection primarily from helium neon (HeNe), sodium vapor, gold vapor, diode 2, dye, krypton at 647nm and 676 nm, and ruby attenuation, PDT and dermatology laser protective applications.

Laser windows can be custom cut, moulded, and drilled to your CAD specifications for use in enclosures or machine windows.

This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

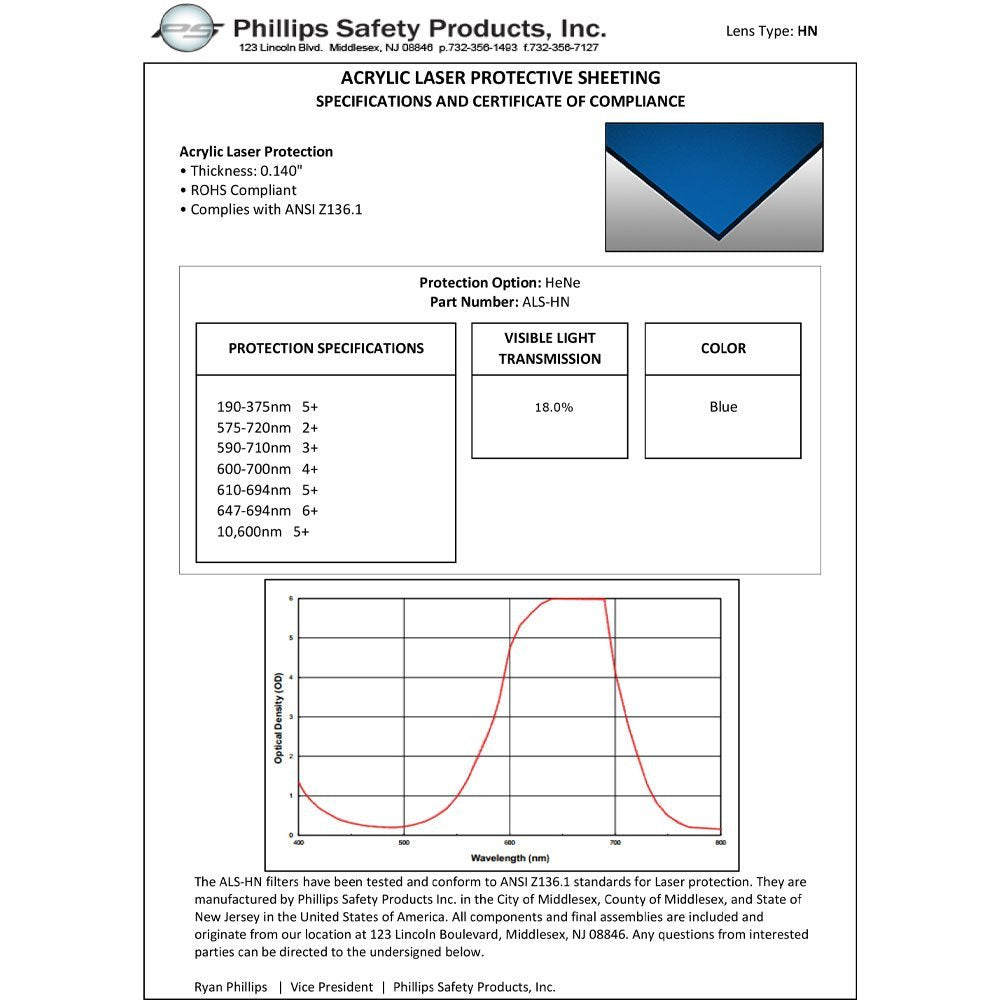

Filter specifications can be permanently engraved on the window. Custom sizes and shapes available. This HeNe Laser Acrylic Sheet meets and/or exceed US ANSI Z136 standards for use with lasers.  .150" Thickness

Maximum Sheet Size 24 x 36

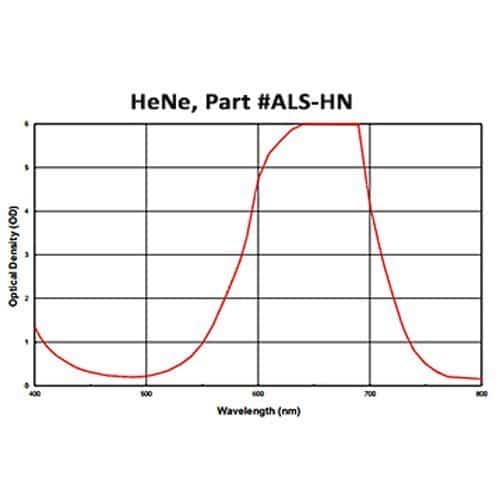

OD  5+ 190-375 nm
OD  2+ 575-720 nm
OD  3+ 590-710 nm
OD  4+ 600-700 nm
OD  5+ 610-694 nm
OD  6+ 647-694 nm
OD  5+ 10,600 nm

VLT = 18%

If you are looking for another laser sheet, please see our full collection on our Laser Sheets and Laser Windows category.
