Alexandrite Diode Yag - Model 33

The Alexandrite Diode YAG Model 33 pairs Phillips Safety's green Y93 polycarbonate filter with the Model 33 fitover frame. It is designed for clinics and labs that run alexandrite, diode or Nd:YAG systems, and it fits over most prescription spectacles so wearers do not need a separate prescription pair.

The Y93 filter gives broad cover across UV and blue light and through the near-infrared, with its strongest ratings at the 755 nm alexandrite line and the 1064 nm Nd:YAG line. Phillips Safety lists the lens as CE certified to EN 207. With around 41% visible light transmission, the view is brighter than many multi-wavelength filters, which helps when you need to see the treatment area clearly.

Key specifications:

• Filter: Y93, green polycarbonate

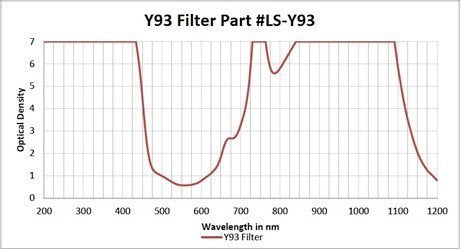

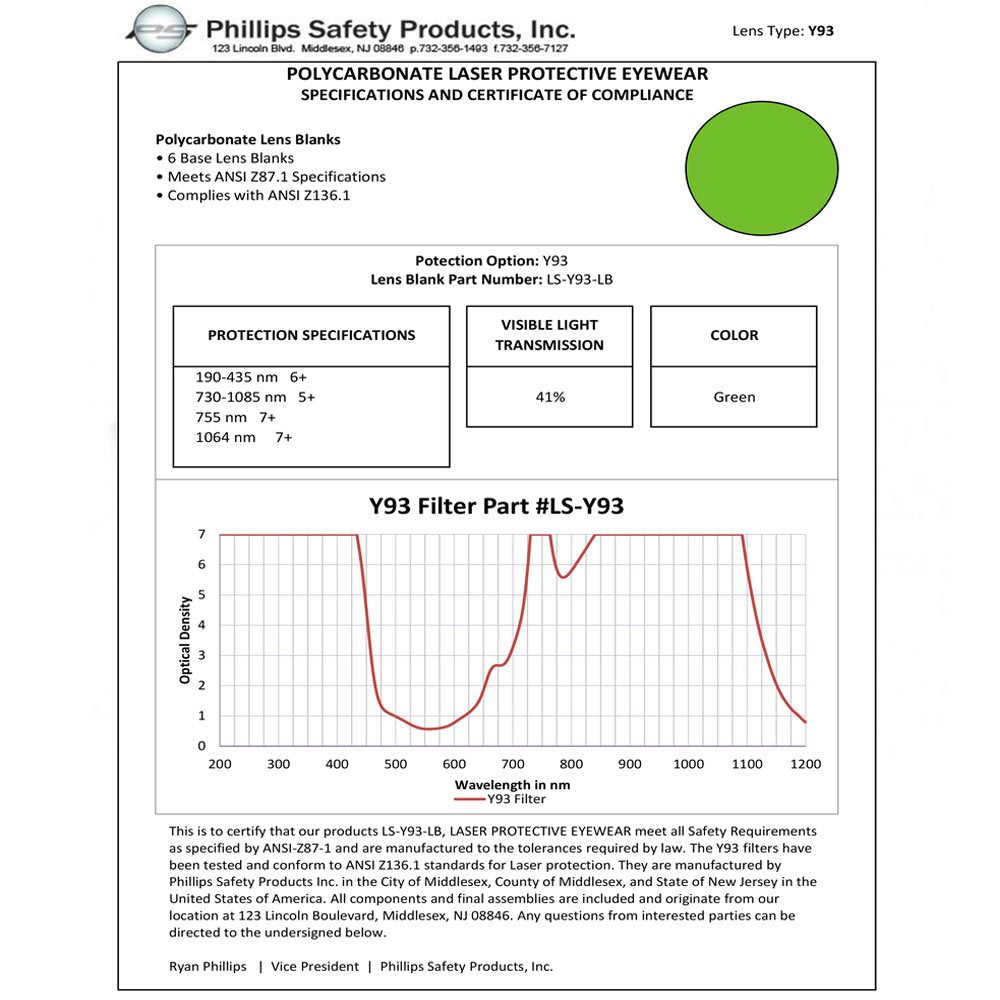

• Optical density: OD 6+ at 190–435 nm; OD 5+ at 730–1085 nm; OD 7+ at 755 nm; OD 7+ at 1064 nm
• EN 207 markings (manufacturer): 190–315 D LB7 + IR LB4; 315–420 D LB5 + IR LB6; 420–440 DIR LB5; 730–1085 DIR LB5; 755 and 1064 D LB6 + IR LB7
• Visible light transmission: approx. 41%
• Laser compatibility: alexandrite, diode, Nd:YAG

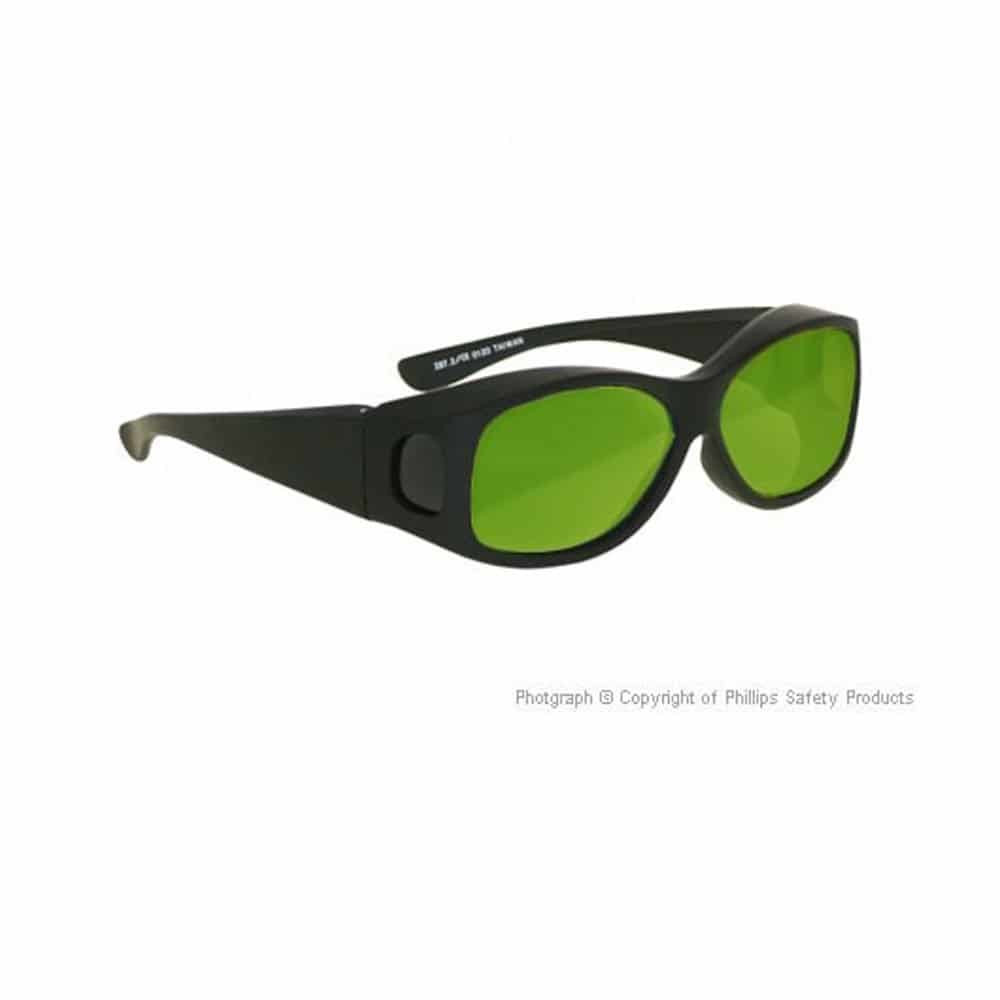

• Frame: Model 33 fitover, black plastic, adjustable temples, integrated side shields
• Sizes: large / extra large
• Also meets ANSI Z136.1 and ANSI Z87.1

Always check your device's wavelength and OD requirement before ordering. Send us your laser details if you would like us to confirm the match.

• One fitover covers alexandrite (755 nm), diode and Nd:YAG (1064 nm) wavelengths
• Filter CE certified to EN 207, according to the manufacturer
• Around 41% light transmission for a clearer view of the work area
• Wears over your own prescription glasses
• Side shields and adjustable temples for an enclosed, secure fit
