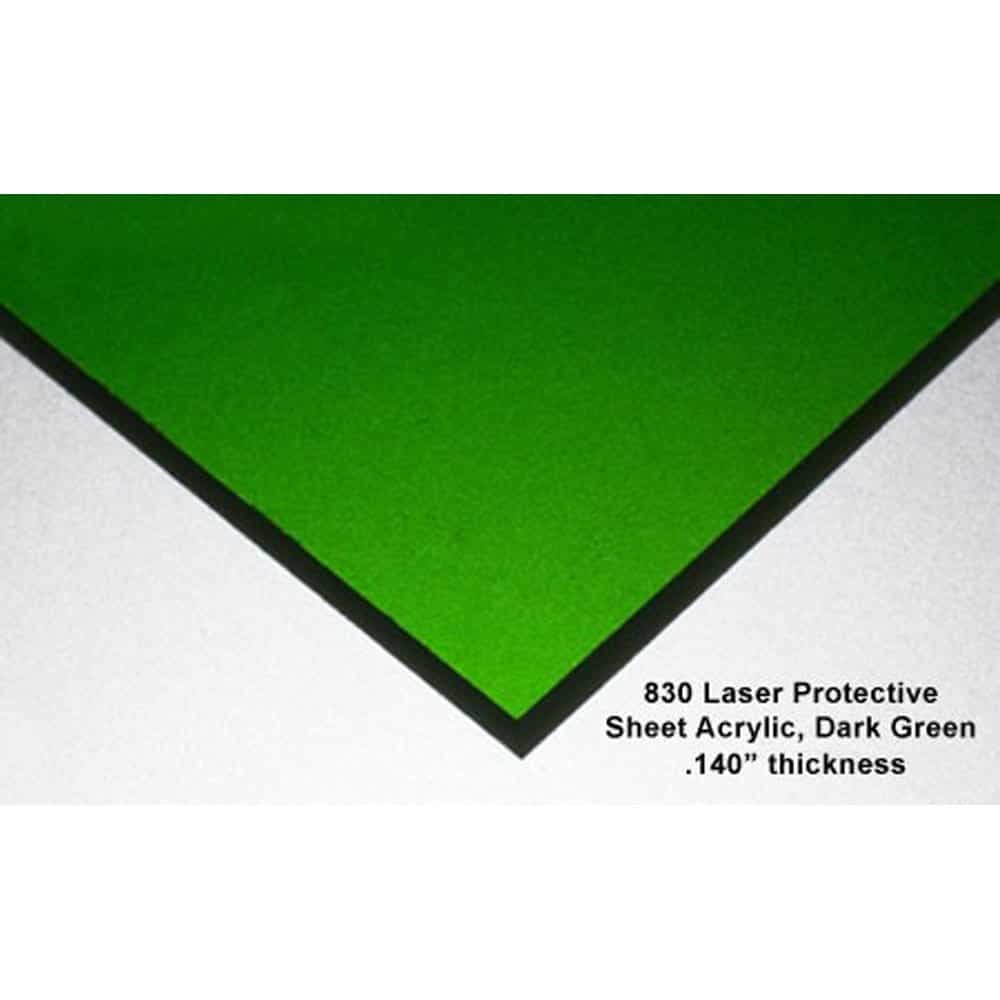

830 ALS-DYAG Acrylic Laser Sheet, Dark Green

Price on request. Prices depend on size and quantity, so we quote each order. Request a quote with your laser wavelength (nm), the size you need (mm) and the quantity, and we will email you a price, usually within 1 working day.

The 830 ALS-DYAG Acrylic Laser Sheet is a laser safety window offering protection primarily from Full IR protection for alexandrite, broad band A, IR diode 1, diode 2 or diode 3, Nd:YAG, telecom and fiber optics laser wavelengths, gallium arsenide GaAs, Ti:Sapphire, solid state YAG doped mid IR lasers such as Tm:YAG, ErYt:YAG, welding, CO(2) protection, UV curing, blue light and excimer protection.

Laser windows can be custom cut, moulded, and drilled to your CAD specifications for use in enclosures or machine windows.

This laser safety window may provide protection from other laser wavelengths not listed. Please see Product Information for additional information about this filter or contact us.

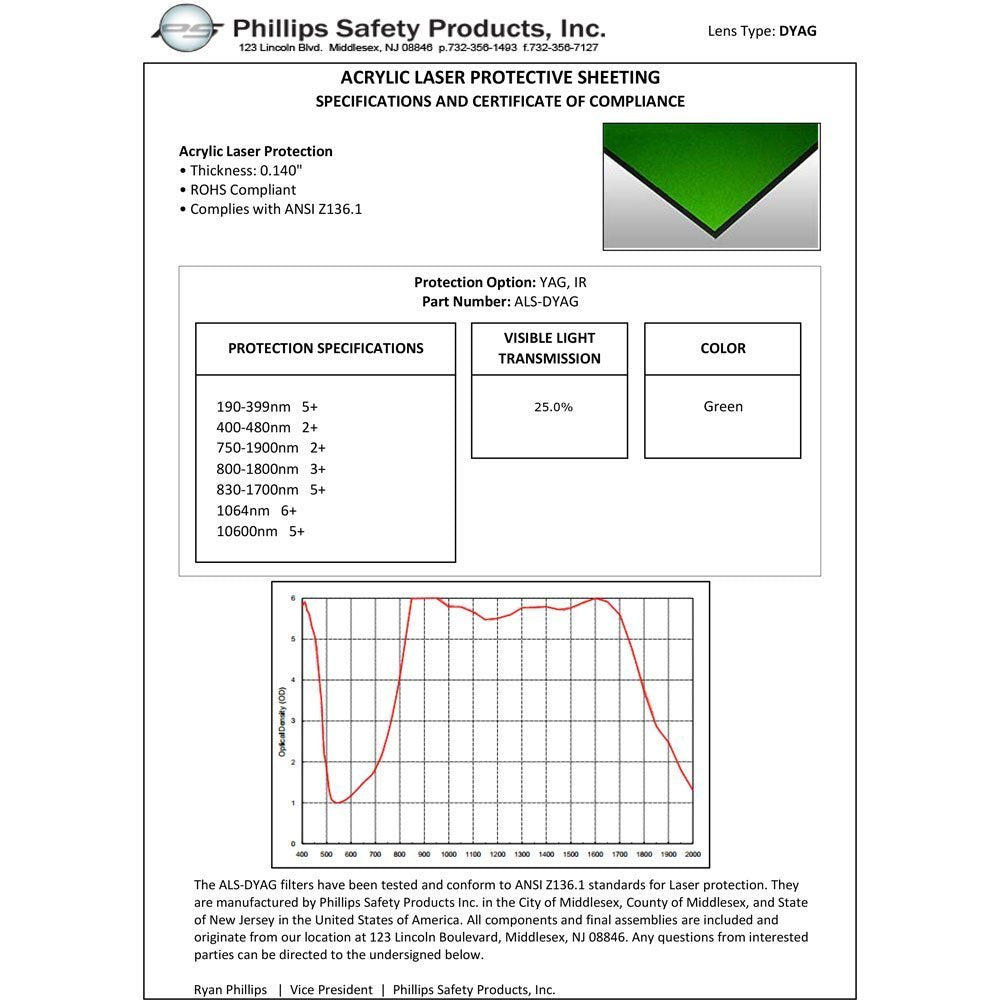

Filter specifications can be permanently engraved on the window. Custom sizes and shapes available. This laser safety viewing window meets and/or exceed US ANSI Z136 standards for use with lasers. 3.6 mm (0.140") thickness

Maximum sheet size 610 × 914 mm (24" × 36")

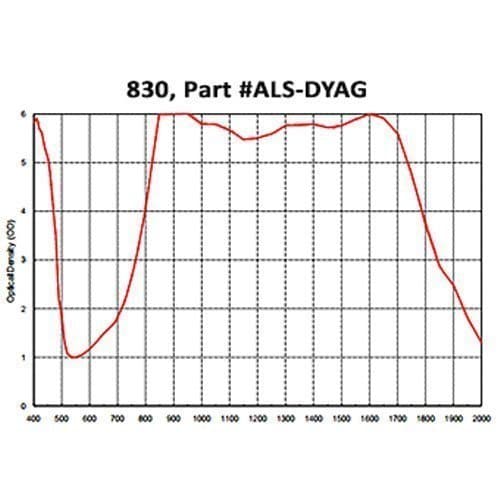

OD 5 190-399nm
OD 2 400-480nm
OD 2 750-1900nm
OD 3 800-1800nm
OD 5 830-1700nm
OD 6 1064nm
OD 5 10,600nm

VLT = 25%

If the 830 ALS-DYAG Acrylic Laser Sheet is not what you require, check out our other Laser Sheets and Laser Windows.
